Photoshop Studies.

Design Communication II
PROJECT 08 / 17
SHEETS 31–32

A study of atmosphere, material, and context through edited architectural elevations and sections.

Textured Long Elevation. An edited elevation adds wood-toned surfaces, sky, and planted context to the long glazed facade, distinguishing the roof layers and pale building base.

Architectural summary

These edited elevations and sections add surface texture and landscape context to a digital building study. Wood-toned facades, pale base surfaces, trees, and sky distinguish the building from its surroundings. Bold ground and section cuts make the sloping site and interior enclosure easier to read while preserving the underlying geometry of the original drawings.

  • Architectural representation
  • Texture and context
  • Section composition

Edited Elevations

PORTFOLIO SHEET 31
08.31.01View image +

Textured Long Elevation

An edited elevation adds wood-toned surfaces, sky, and planted context to the long glazed facade, distinguishing the roof layers and pale building base.

08.31.02View image +

Textured Uphill Elevation

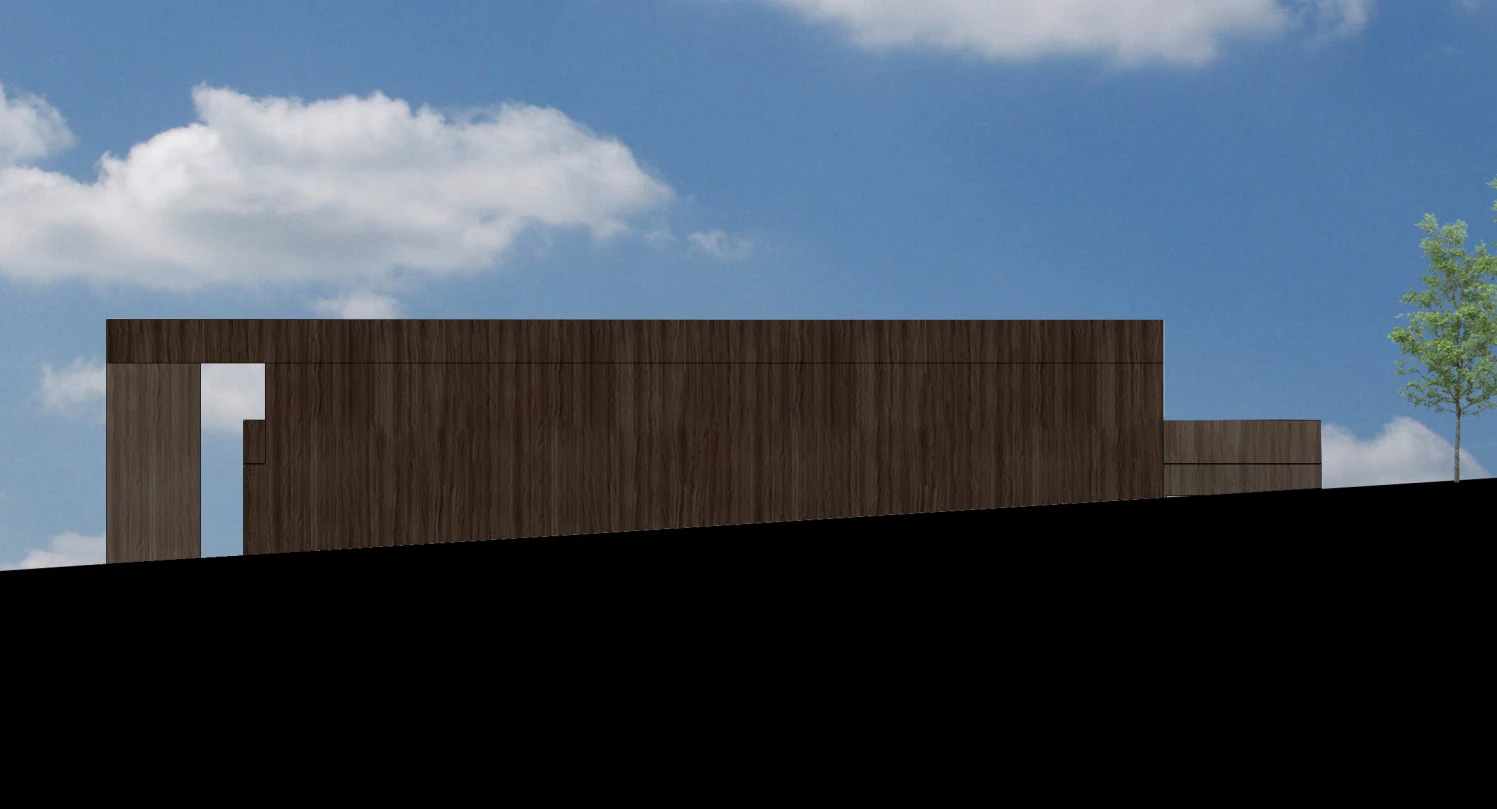

This edited uphill elevation places a broad wood-toned wall above a dark ground cut, with sky and trees framing the simple roof profile.

08.31.03View image +

Terrace End in Landscape

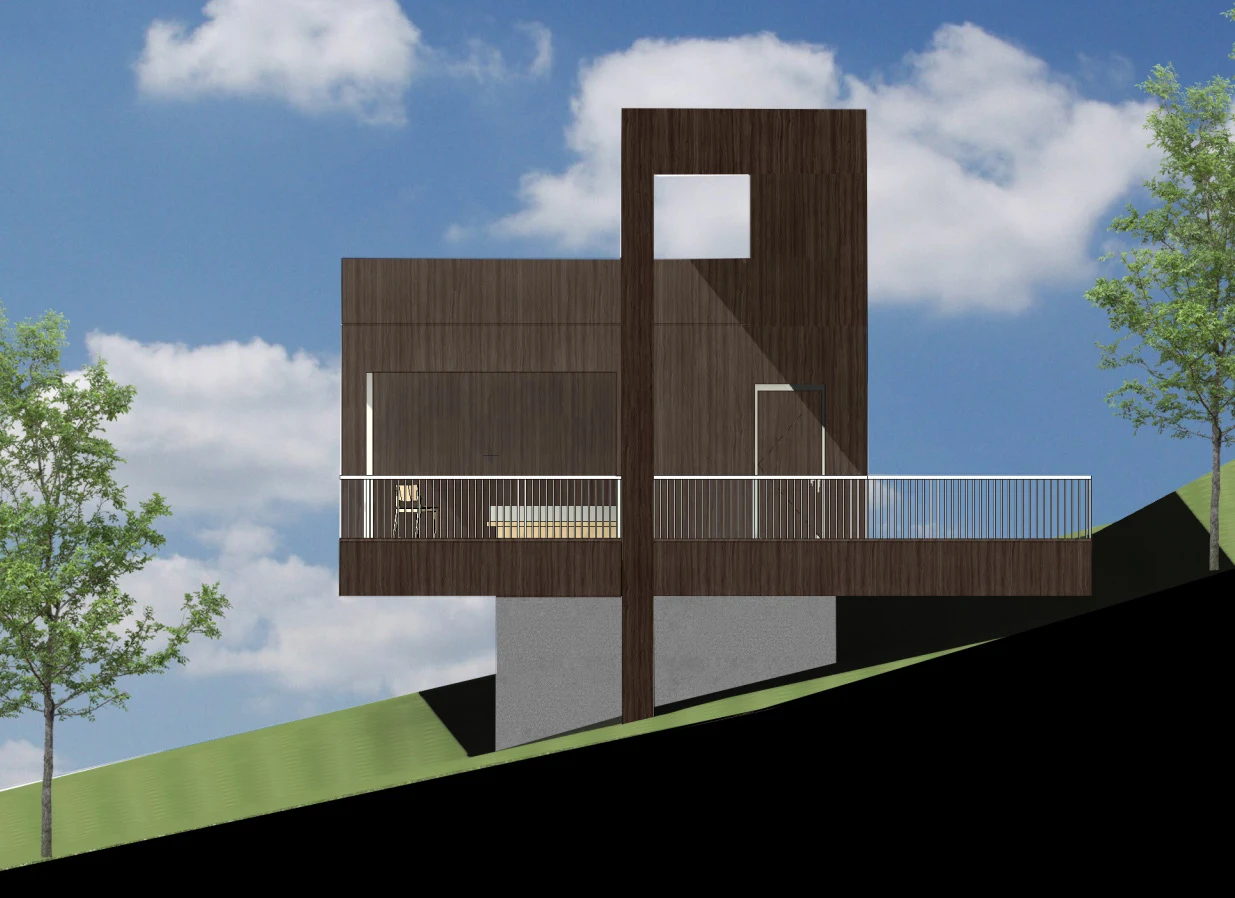

An edited end elevation shows a terrace, tall wall opening, and exposed base against sloping green terrain, adding trees and sky for context.

08.31.04View image +

Opposite Terrace End Study

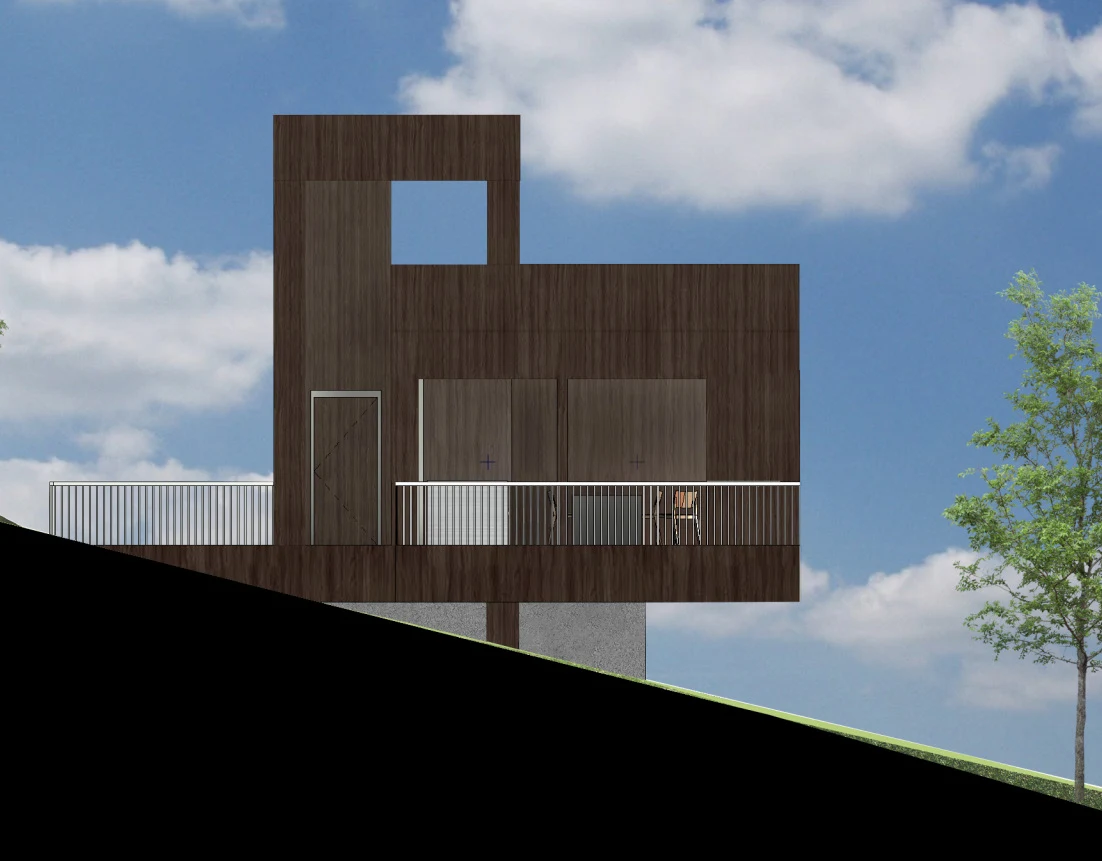

This edited elevation combines a tall rectangular opening, terrace railing, and wood-toned facade, with a dark ground cut clarifying the site’s slope.

Original sheet & annotations +Photoshop Studies: edited elevations. This presentation sheet brings together textured long elevation, textured uphill elevation, terrace end in landscape and related views, preserving the original layout and annotations.

Photoshop Studies: edited elevations. This presentation sheet brings together textured long elevation, textured uphill elevation, terrace end in landscape and related views, preserving the original layout and annotations.

Edited Building Sections

PORTFOLIO SHEET 32
08.32.01View image +

Textured Longitudinal Section

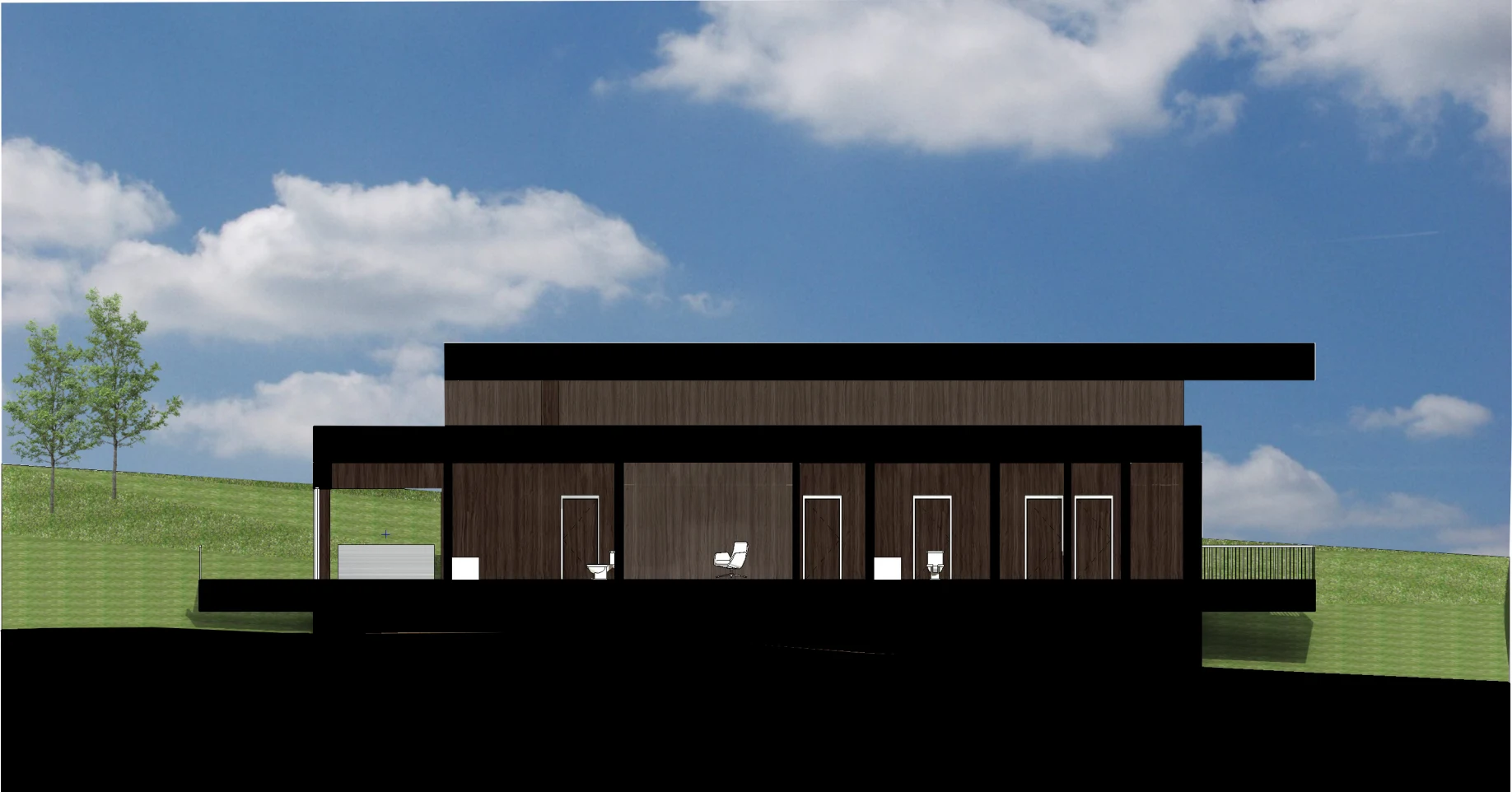

A color-edited section reveals the sequence of interior spaces beneath offset roof planes, while a dark ground cut separates the building from the landscape.

08.32.02View image +

Textured Bedroom Cross Section

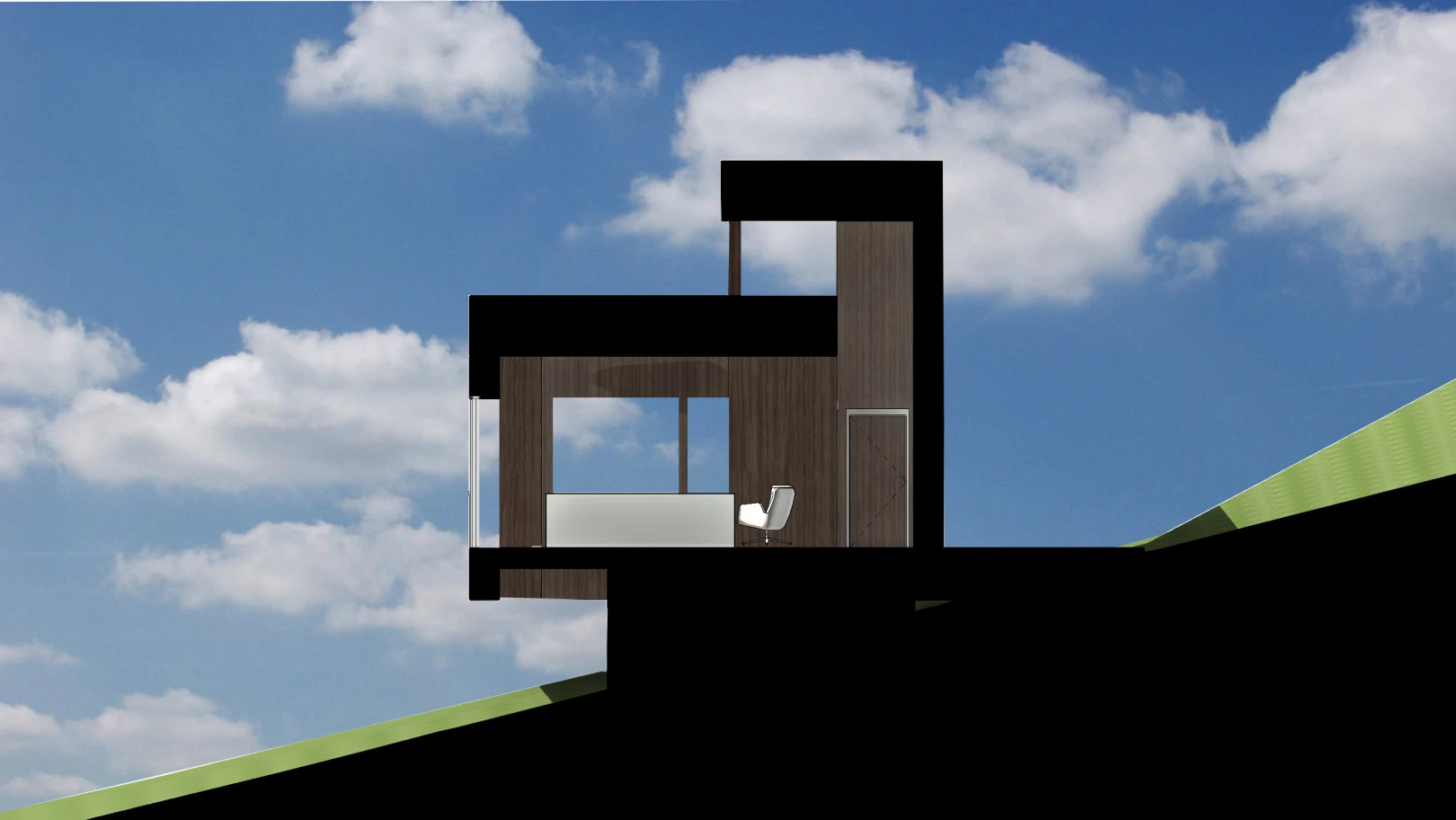

This edited cross section shows a bedroom beneath stepped roof heights, using a bold cut outline and landscape background to clarify the interior enclosure.

Original sheet & annotations +Photoshop Studies: edited building sections. This presentation sheet brings together textured longitudinal section, textured bedroom cross section, preserving the original layout and annotations.

Photoshop Studies: edited building sections. This presentation sheet brings together textured longitudinal section, textured bedroom cross section, preserving the original layout and annotations.
